The Soundweb London BLU-100 offers a fixed configuration of 12 inputs and 8 outputs, configurable signal processing and a high bandwidth, fault tolerant digital audio bus.
The BLU-100 has open architecture which is fully configurable through HiQnet™ Audio Architect. A rich palette of processing and logic objects and a “drag and drop” method of configuration provide a simple and familiar design environment.
This processor features a low latency, fault tolerant digital audio bus of 48 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber media converters can be used to increase the distance between devices to over 40km.
The BLU-100 is compatible with the entire Soundweb London family and its 48 channel digital audio bus represents channels 1-48 of the larger 256 channel digital audio bus when integrated with the BLU-800, BLU-320, BLU-160, BLU-120 and BLU-BOB devices.
Analog Inputs provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel.

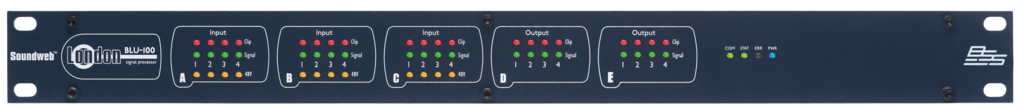

Phantom Power, Signal Present and Clip information per channel is easily accessible, without the requirement for a PC, from clear front panel LED indication. A bi-directional locate function allows devices to be identified both from and within HiQnet Audio Architect.
12 Control Inputs and 6 Logic Outputs allow the BLU-100 to be integrated with GPIO compatible devices. The Soundweb London Interface Kit, comprehensive documentation which details how Soundweb London systems can be integrated with third party control systems, is included within the installation of HiQnet Audio Architect.
The BLU-100 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.
Features
- 12 Analog Inputs (with 48v Phantom Power per Channel)
- 8 Analog Outputs
- Configurable Signal Processing
- Rich Palette of Processing and Logic Objects
- 48 Channel, Low Latency, Fault Tolerant Digital Audio Bus
- Clear Front Panel LED Indication
- Bi-Directional Locate Functionality
- 12 Control Inputs and 6 Logic Outputs for GPIO Integration
- Soundweb London Interface Kit for Third Party Control System Integration (Documentation)
- HiQnet Device
- Configuration, Control and Monitoring from HiQnet Audio Architect
Downloads
Size | ||||
BLU-100 CAD files
updated: Mar 2024
|
3.08 MB | |||
BLU-100 Cut Sheet-English
updated: Mar 2024
|
710 KB | |||
BLU-100 Install Guide-English
updated: Mar 2024
|
1.07 MB | |||
Brochures | ||||
Soundweb London Family Brochure
updated: Oct 2020
|
1.3 MB | |||
BLU 100 Series Brochure
updated: Aug 2015
|
1.15 MB | |||
BLU-100 Brochure
updated: Aug 2015
|
1.02 MB | |||
Pro Install Overview Brochure
updated: Oct 2023
|
23.1 MB | |||
Software | ||||
HiQnet Audio Architect
version 2.55.2,
updated: Feb 2024
|
||||
HiQnet Motion Control
updated: Nov 2016
|
||||
HiQnet London Architect
version 6.02.R3,
updated: Nov 2023
|
117 MB | |||
3rd Party Resources | ||||
Soundweb London Third Party Control Application Guide
updated: Sep 2016
|
568 KB | |||
Soundweb London DI Tool
updated: Oct 2015
|
440 KB | |||
Soundweb London DI Kit
updated: Oct 2015
|
1.61 MB | |||
AMX Soundweb London module v2.2
updated: Aug 2015
|
1.75 MB | |||
Crestron Series 4 Soundweb London module
version 1.4,
updated: Feb 2023
|
41.6 MB | |||
AMX HPro BSS Gateway Comm
version 1.0.15,
updated: Jun 2021
|
25.1 MB | |||
AMX BSS NetLinx Module
updated: Jun 2021
|
5.03 MB | |||
Crestron Soundweb London module v1.1
updated: Feb 2023
|
35.4 MB | |||
Application Guides | ||||
HARMAN Training Theater AV Solution for Business
updated: Dec 2015
|
||||
HARMAN Auditorium AV Solution for Business
updated: Dec 2015
|
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Specifications
Chassis | 19" (single rack space) |
Custom I/O (card based) | no |
Analog Inputs | 12 |
Digital Inputs | 0 |
AEC Inputs | 0 |
Analog Outputs | 8 |
Digital Outputs | 0 |
Telephone Connection | 0 |
Max Inputs/Outputs | fixed |
Config | Software |
LCD Display | no |
Logic Processing | |
RS-232 | |
GPIO | |
Signal Processing (MHz) | 400 |
Cobranet | no |
SWL Digital Audio Bus | 48 |
AVB | no |
Dante | no |
