HARMAN Professional Solutions Delivers a Refined Audio Experience Wellington Cathedral
Integrator David Kendall and JPRO (Formerly JANDS NZ) deploy JBL, Crown, Soundcraft and BSS solutions to provide balanced coverage and exceptional intelligibility
WELLINGTON, New Zealand— David Kendall Audio Visual recently installed an end-to-end networked audio system by HARMAN Professional Solutions at the Wellington Cathedral of St. Paul.

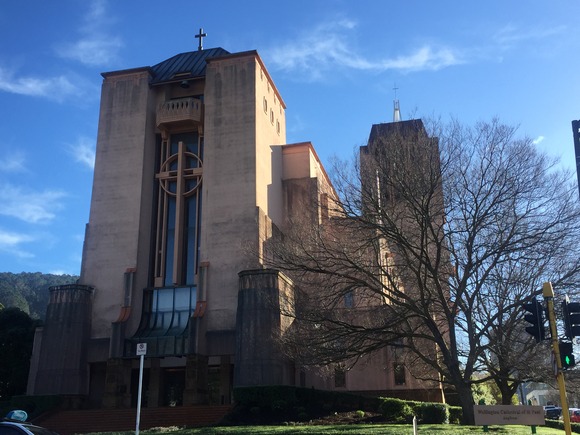

Located in the historic district of Thorndon, the Wellington Cathedral of St. Paul is the mother church of the Anglican Diocese of Wellington, attracting a vibrant community of worshippers each week. In addition to serving an important role in the Anglican Church, the ornate architecture and refined acoustics of Wellington Cathedral also make it a popular venue for choral and orchestral concerts.
With sound reinforcement playing a critical role at Wellington Cathedral, management wanted to ensure optimum audio quality and balanced coverage during church services and concerts. To achieve these goals, management hired David Kendall Audio Visual to upgrade its aging sound system with a complete HARMAN networked sound reinforcement system. Due to their professional audio expertise and ability to provide unique custom designs, David Kendall chose supplier JPRO (formerly JANDS NZ) to partner on the project.
“I knew this was going to be a challenging job—many people have tried over the years,” said David Kendall, Integrator. “Thanks to the technology provided by HARMAN solutions, we were able to make big improvements while staying within the church’s budget. I am very proud of what we achieved with the HARMAN system in the cathedral’s challenging acoustic environment.”
The front nave, the Cathedral’s main area, is covered using JBL Intellivox DS280 array speakers, which offer excellent speech intelligibility throughout the coverage area while maintaining a constant sound pressure level up to 110 feet. The Intellivox DS280’s unobtrusive design and active vertical beam shaping helped the JPRO design to achieve seamless integration and optimum performance in the cathedral. To cover the rear nave of the cathedral, Intellivox DC280 speakers that were part of the previous sound system were redeployed, while JBL CBT-50LA and CBT-100LA column speakers were deployed for chancel-, choir- and front-fills. The CBT Series speakers are powered by Crown DCi Series amplifiers.
“The main objective when designing the system was to ensure that the loudspeakers distributed the sound evenly in the desired areas, while minimizing unwanted reflections,” said Nicholas van Dyk, JPRO. “The JBL Intellivox and CBT line array column speakers delivered the coverage and clarity needed to produce properly balanced speech and music reinforcement in the acoustically sensitive cathedral.”
For mixing and audio processing, David Kendall included two BSS Soundweb London BLU-100 audio processors and a Soundcraft Si Impact digital mixing console. The system’s ease of use and intelligent design allows simple operation for everyone at the church, while offering great flexibility for skilled operators.
During liturgy, the microphone levels are controlled with the Soundcraft ViSi iPad app, and can be automatically mixed via a BLU-100 stage box and the Soundweb London automix function. When the venue hosts guest artists and large concerts, a Soundcraft Si Impact digital mixer provides intuitive professional control over the mix.
“We try to update our sound system every ten years or so,” said Reverend Digby Wilkinson, Dean of Wellington. “I am very happy with the latest upgrade—the sound quality, coverage and control provided by the HARMAN system is a huge improvement and it sounds fantastic! We thank David Kendall and the JPRO team for the expertise and hard work they displayed during the installation.”
“It is a privilege to see our solutions being used in the beautiful Wellington Cathedral,” said Ramesh Jayaramn, VP & GM, HARMAN Professional Solutions, APAC. “The new HARMAN system ensures that sermons can be preached with clarity, and the beauty of the choral music can be delivered with perfect balance in the cathedral. Thanks to JPRO for their confidence in HARMAN solutions, and for their relationship-driven approach.”
