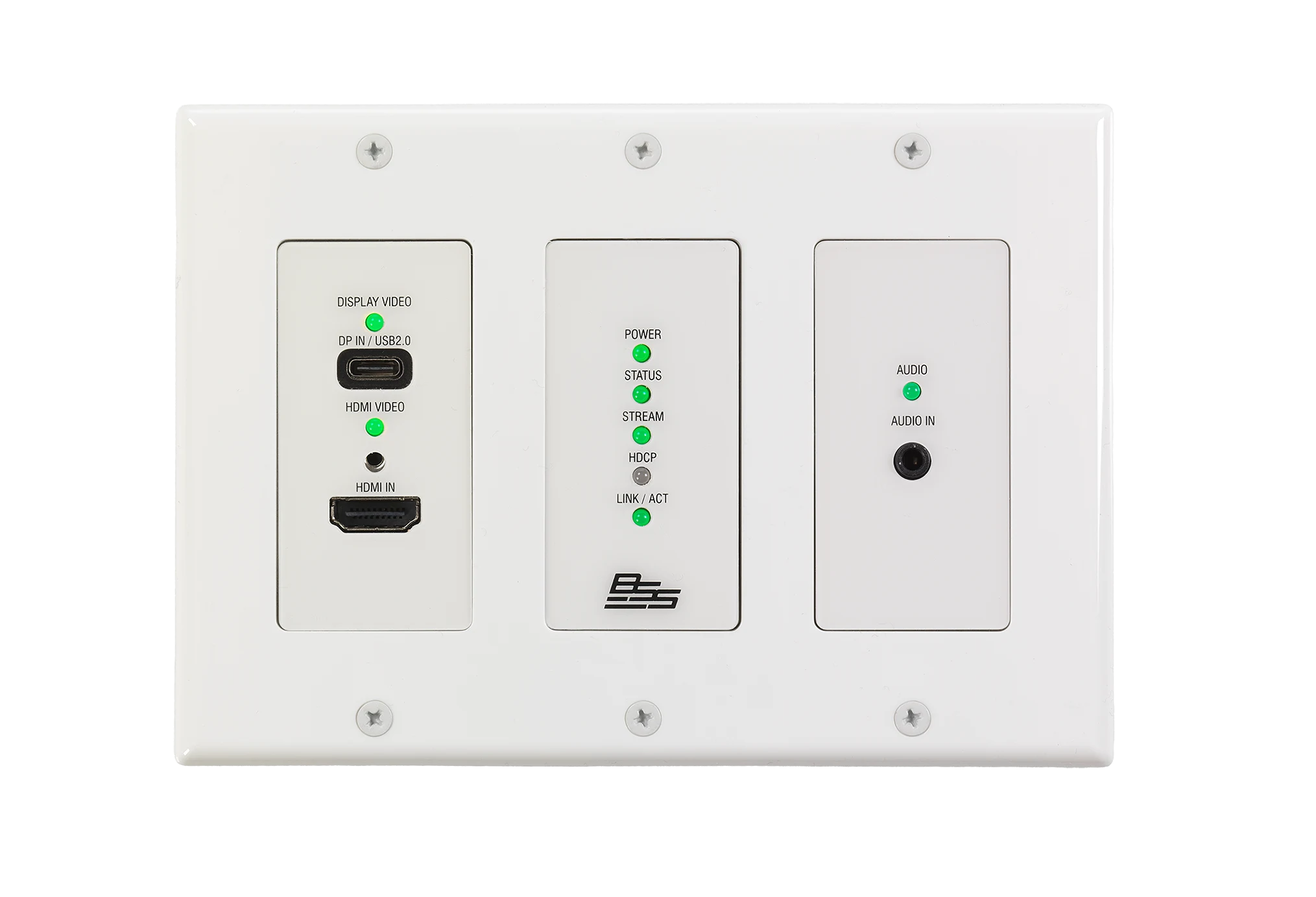

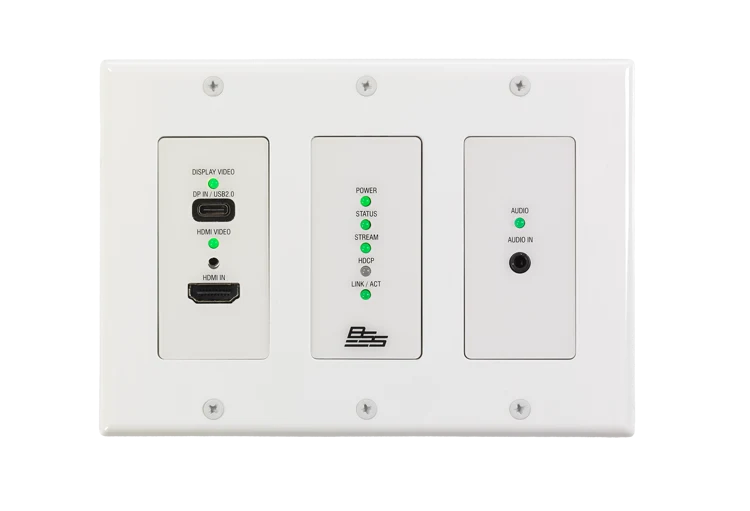

The BSS OMNI-VE-630-WP is an AV-over-IP encoder wallplate for distributing 4K60 4:4:4 video, audio, and USB 2.0 signals over Gigabit Ethernet, in environments ranging from classrooms and meeting rooms to courtrooms, hospitality venues, and large enterprise or government facilities.

At the core of the OMNI-VE-630-WP is the Motion Wavelet Compression (MWC) codec, engineered for pristine visual quality and ultra-low encode to decode latency with fast-motion video, high-detail graphics, and dynamic visual content.

This AVoIP encoder includes USB-C and HDMI inputs with automatic switching. The USB-C interface supports DisplayPort Alt Mode for video input, and USB data for the host PC.

The OMNI-VE-630-WP features USB 2.0 routing and extension through Virtual Network USB 2.0 Hub technology. A host PC can communicate with USB devices located at up to four OMNI 600 decoders or OMNI 200 USB endpoints, supporting USB 2.0 data rates up to 480 Mbps. This capability allows host PCs to interface with cameras, conferencing bars, touch displays, HID peripherals, and other devices at remote locations across the network.

Along with high-performance networked AV distribution, the OMNI-VE-630-WP is Dante AV-A enabled for interoperability with third-party Dante AV-A decoders. Integrators can configure and manage OMNI 600 systems using Dante Controller, Dante Domain Manager, and Dante Director. In addition, this encoder supports two-channel Dante audio input and output, as well as conversion to USB audio (UAC) for the host PC.

The OMNI-VE-630-WP is designed for modern professional AV installations, with essential integration features including PoE+ remote powering, a low-power standby mode, video source preview, custom image and slideshow presentations, and open APIs for third-party control. It is available in two models: OMNI-VE-630-WP (US Version) and OMNI-VE-630-WP-EK (EU/UK Version). Each model includes black and white faceplate inserts and wallplate covers.

HIGH-PERFORMANCE NETWORKED AV DISTRIBUTION

Powered by Motion Wavelet Compression (MWC), OMNI 600 delivers pristine-quality 4K60 4:4:4 video with ultra-low latency. This ensures high-quality presentation of fast-motion video and high-detail content for demanding AV applications.

USB ROUTING OVER IP

Virtual Network USB 2.0 Hub technology enables a USB host, connected to a host transceiver or encoder, to communicate with USB devices at up to four remote endpoints, with support for high-bandwidth conferencing devices as well as HID peripherals.

DANTE AUDIO EN DANTE AV-A INTEROPERABILITEIT

Ingebouwde Dante AV-A compatibiliteit maakt interoperabiliteit met Dante AV-A apparaten van derden mogelijk en systeemconfiguratie en beheer via Dante Controller, Dante Domain Manager en Dante Director. Bovendien ondersteunt elke encoder en decoder twee-kanaals Dante audio-invoer en -uitvoer.

NETWERKBEVEILIGING VAN ONDERNEMINGSKLASSE

BSS OMNI AV over IP bevat uitgebreide netwerkbeveiligingsfuncties en standaarden die voldoen aan de beveiligings- en operationele vereisten van bedrijfsnetwerken.

GECENTRALISEERD SYSTEEMBEHEER

AVX Suite is de essentiële tool voor BSS OMNI AVoIP-systeembeheer, inclusief apparaatdetectie en -configuratie, virtuele matrixschakeling, firmware-updates, systeembewaking en meer.
