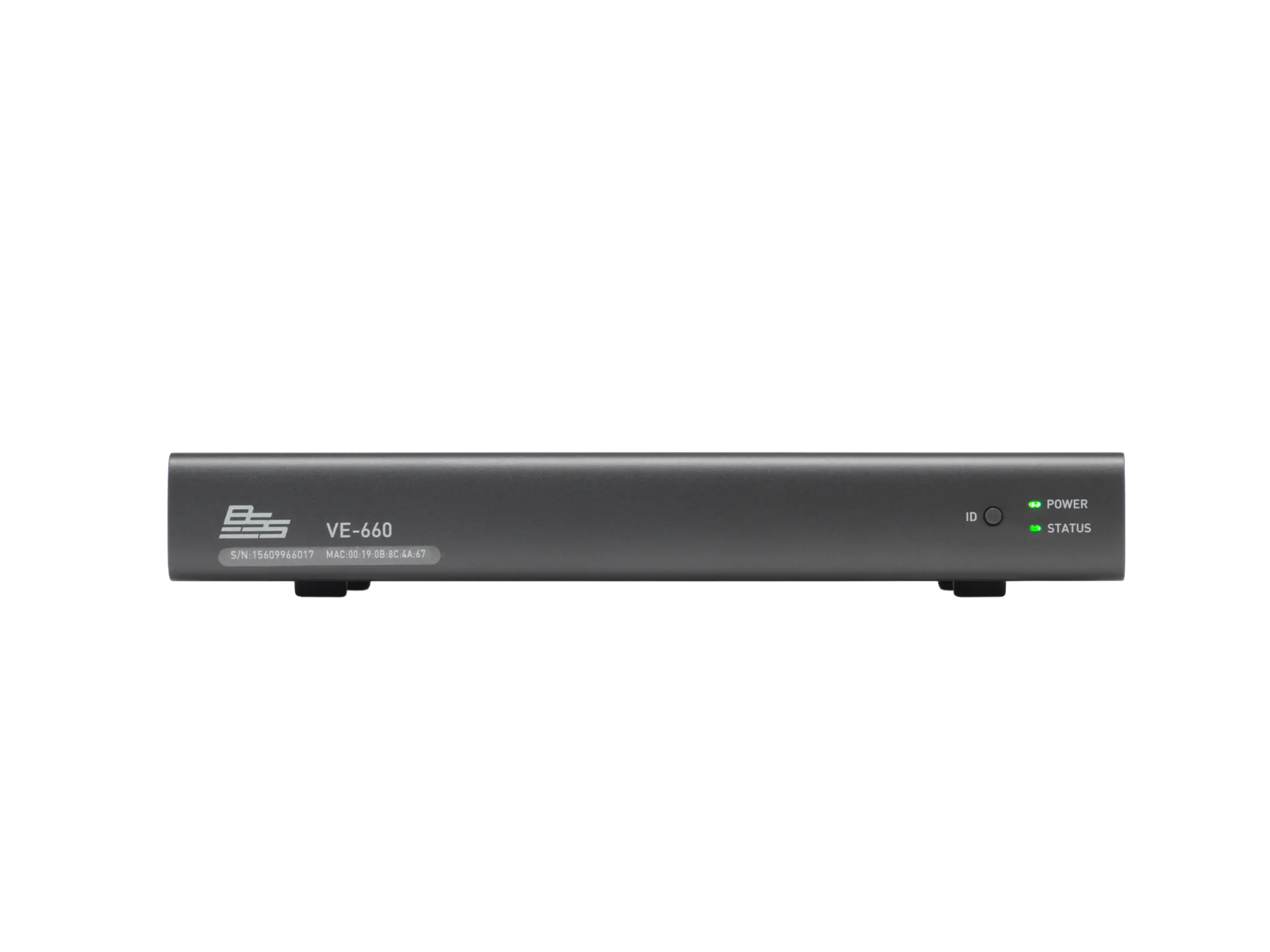

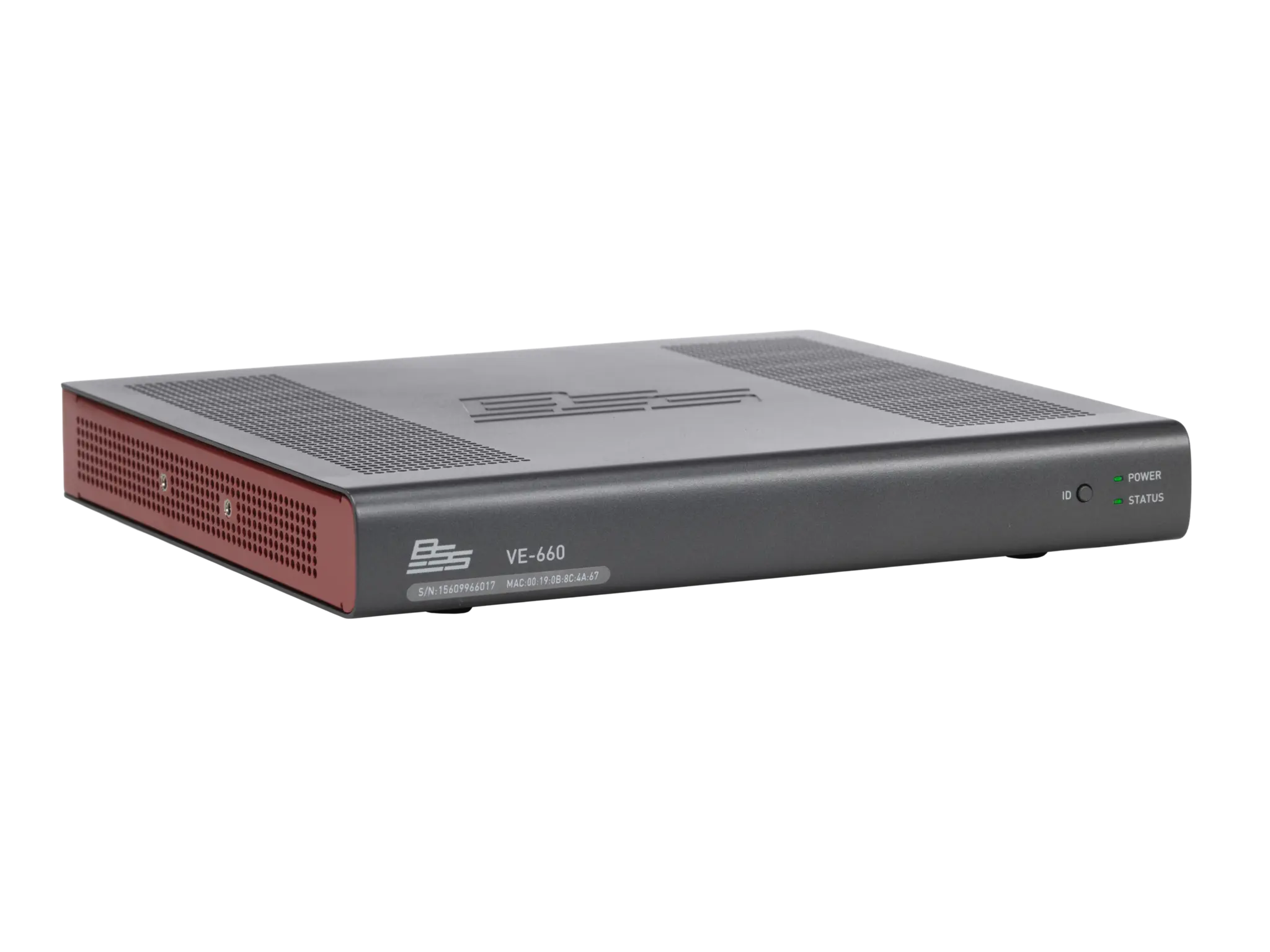

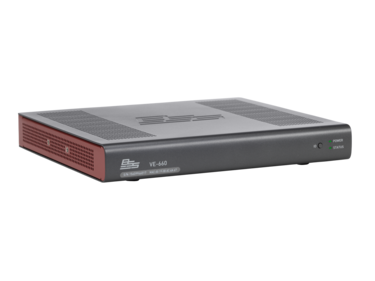

BSS OMNI-VE-660

תמונות גדולות יותר

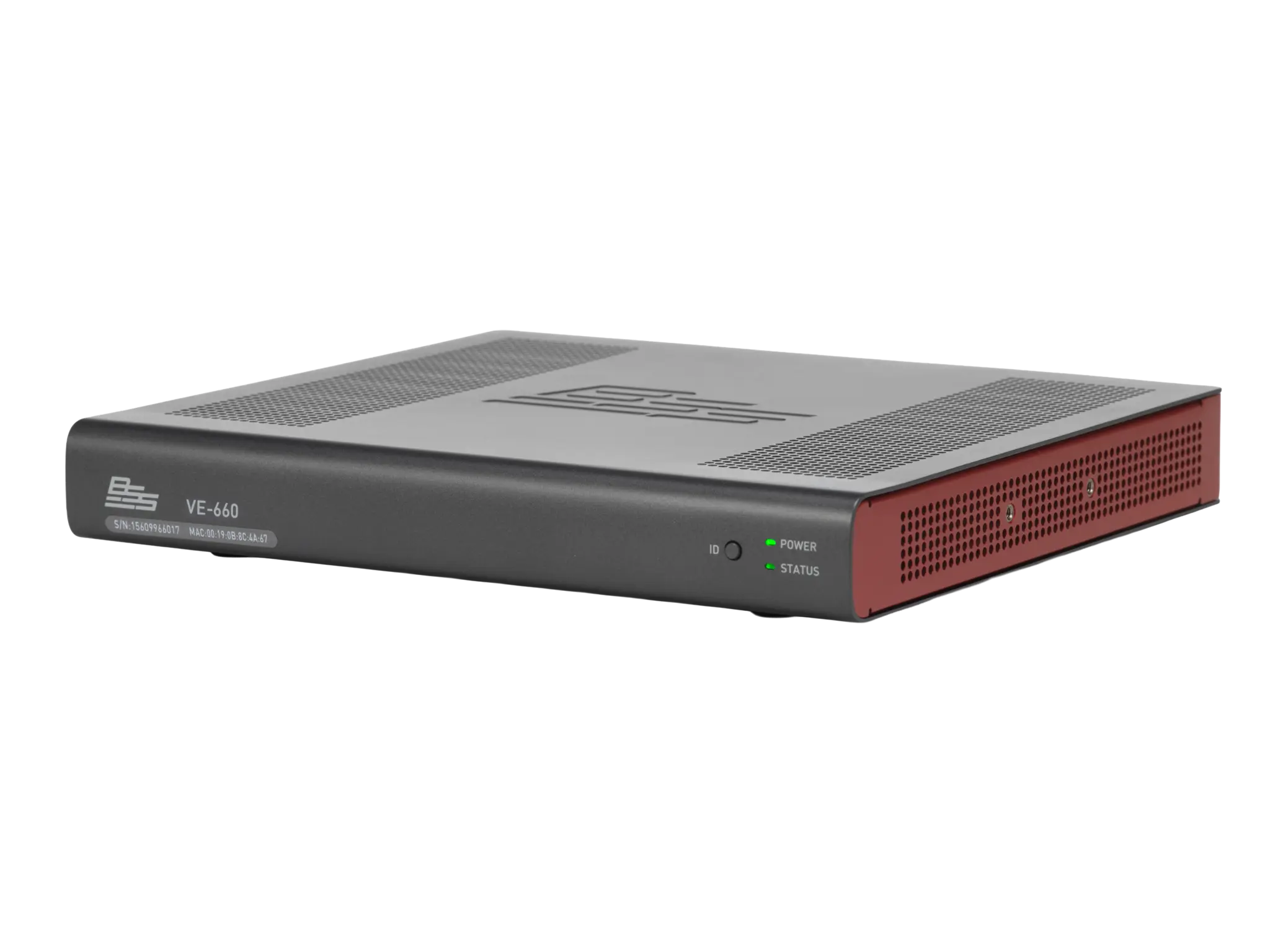

The BSS OMNI-VE-660 is a feature-rich AV-over-IP encoder for distributing 4K60 4:4:4 video, audio, control, and USB 2.0 signals over Gigabit Ethernet, in environments ranging from classrooms and meeting rooms to courtrooms, hospitality venues, and large enterprise or government facilities.

At the core of the OMNI-VE-660 is the Motion Wavelet Compression (MWC) codec, engineered for pristine visual quality and ultra-low encode to decode latency with fast-motion video, high-detail graphics, and dynamic visual content. Additionally, the OMNI-VE-660 features simultaneous, standards-based 1080p H.264 or H.265 encoding, for bandwidth-efficient streaming over WANs or shared networks to third-party devices and platforms.

This AVoIP encoder includes USB-C and HDMI inputs with automatic switching and HDMI loop output. The USB-C interface supports DisplayPort Alt Mode for video input, USB data for the host PC, and up to 100 watts charging when a standard USB PD power supply is connected.

The OMNI-VE-660 features USB 2.0 routing and extension through Virtual Network USB 2.0 Hub technology. A host PC can communicate with USB devices located at up to four OMNI 600 decoders or OMNI 200 USB endpoints, supporting USB 2.0 data rates up to 480 Mbps. This capability allows host PCs to interface with cameras, conferencing bars, touch displays, HID peripherals, and other devices at remote locations across the network.

Along with high-performance networked AV distribution, the OMNI-VE-660 is Dante AV-A enabled for interoperability with third-party Dante AV-A decoders. Integrators can configure and manage OMNI 600 systems using Dante Controller, Dante Domain Manager, and Dante Director. In addition, this encoder supports two-channel Dante audio input and output, as well as conversion to USB audio (UAC) for the host PC.

The OMNI-VE-660 is designed for modern professional AV installations, with essential integration features including PoE+ remote powering, a low-power standby mode, video source preview, custom image and slideshow presentations, and open APIs for third-party control.

HIGH-PERFORMANCE NETWORKED AV DISTRIBUTION

Powered by Motion Wavelet Compression (MWC), OMNI 600 delivers pristine-quality 4K60 4:4:4 video with ultra-low latency. This ensures high-quality presentation of fast-motion video and high-detail content for demanding AV applications.
SIMULTANEOUS SECONDARY H.26x STREAMING

Simultaneously output a secondary, standards-based 1080p H.264 or H.265 stream, for livestreaming over third-party services, delivering to recording platforms, or distributing to browsers and mobile devices.
ניתוב USB דרך IP

טכנולוגיית מפצל USB 2.0 ברשת וירטואלית מאפשרת למחשב מארח USB, המחובר למשדר-מקלט מארח או למקודד, לתקשר עם התקני USB בעד ארבע נקודות קצה מרוחקות, עם תמיכה בהתקני ועידה בעלי רוחב פס גבוה וכן בהתקנים היקפיים מסוג HID.
יכולת עבודה הדדית של DANTE AUDIO ו-DANTE AV-A

תאימות Dante AV-A מובנית מאפשרת עבודה הדדית עם התקני Dante AV-A של צד שלישי וכן קביעת הגדרות וניהול של המערכת דרך Dante Controller, Dante Domain Manager ו-Dante Director. בנוסף, כל מקודד ומפענח תומך בקלט ופלט אודיו Dante דו-ערוצי.
ENTERPRISE-GRADE NETWORK SECURITY

BSS OMNI AV over IP incorporates comprehensive network security features and standards to meet the security and operational requirements of enterprise networks.
ניהול מערכת מרכזי

AVX Suite הוא המשאב החיוני לניהול מערכת BSS OMNI AVoIP הכולל גילוי התקנים וקביעת תצורה, מיתוג מטריצה וירטואלי, עדכוני קושחה, ניטור מערכת ועוד.

HIGH-PERFORMANCE NETWORKED AV DISTRIBUTION

Powered by Motion Wavelet Compression (MWC), OMNI 600 delivers pristine-quality 4K60 4:4:4 video with ultra-low latency. This ensures high-quality presentation of fast-motion video and high-detail content for demanding AV applications.

SIMULTANEOUS SECONDARY H.26x STREAMING

Simultaneously output a secondary, standards-based 1080p H.264 or H.265 stream, for livestreaming over third-party services, delivering to recording platforms, or distributing to browsers and mobile devices.

ניתוב USB דרך IP

טכנולוגיית מפצל USB 2.0 ברשת וירטואלית מאפשרת למחשב מארח USB, המחובר למשדר-מקלט מארח או למקודד, לתקשר עם התקני USB בעד ארבע נקודות קצה מרוחקות, עם תמיכה בהתקני ועידה בעלי רוחב פס גבוה וכן בהתקנים היקפיים מסוג HID.

יכולת עבודה הדדית של DANTE AUDIO ו-DANTE AV-A

תאימות Dante AV-A מובנית מאפשרת עבודה הדדית עם התקני Dante AV-A של צד שלישי וכן קביעת הגדרות וניהול של המערכת דרך Dante Controller, Dante Domain Manager ו-Dante Director. בנוסף, כל מקודד ומפענח תומך בקלט ופלט אודיו Dante דו-ערוצי.

ENTERPRISE-GRADE NETWORK SECURITY

BSS OMNI AV over IP incorporates comprehensive network security features and standards to meet the security and operational requirements of enterprise networks.

ניהול מערכת מרכזי

AVX Suite הוא המשאב החיוני לניהול מערכת BSS OMNI AVoIP הכולל גילוי התקנים וקביעת תצורה, מיתוג מטריצה וירטואלי, עדכוני קושחה, ניטור מערכת ועוד.

תכונות

AV-over-IP encoder for 4K60 4:4:4 video, audio, control, and USB 2.0 over Gigabit Ethernet
High-performance MWC codec delivers pristine-quality video with ultra-low latency
Simultaneous, standards-based 1080p H.264 or H.265 encoding for bandwidth-efficient streaming
USB-C and HDMI inputs with automatic switching and HDMI loop output
USB-C interface supports DisplayPort Alt Mode for video input, USB data for host PC, and up to 100 watts charging when a standard USB PD power supply is connected
Virtual Network USB 2.0 Hub for routing between a USB host and devices at up to four remote locations
Two-channel Dante audio input and output (2x2) with conversion to USB audio (UAC)
Dante AV-A enables interoperability with third-party networked AV decoders, plus system management from Dante Controller, Dante Domain Manager, and Dante Director
Video preview from the built-in web interface or a touch panel
Supports custom image and slideshow presentations
PoE+ powered with low-power (standby) mode to conserve energy
Enterprise-grade network security and standards including IEEE 802.1x, HTTPS, TLS, AES-256 encryption, LDAP, VLAN tagging, and QoS
AVX Suite for OMNI 600 system configuration and management
HARMAN HControl and BSS Direct Control provide open APIs for third-party control integration
UL2043 certification for plenum space installation

סרטונים

הורדות

Brochures

	שפה	גודל	הועלה
BSS OMNI Brochure עודכן: יול 2026		3.85 מגה-בייט	יול 2026

CAD Drawings

	גודל	הועלה
OMNI-VE-660 - CAD Drawings עודכן: אוג 2026	17.1 מגה-בייט	אוג 2026

Compliances

	גודל	הועלה
OMNI-Vx-660 - EU Declaration of Conformity עודכן: אוג 2026	597 קילו-בייט	אוג 2026
OMNI-Vx-660 - UKCA Declaration of Conformity עודכן: אוג 2026	521 קילו-בייט	אוג 2026

Spec Sheets

	גרסה	שפה	גודל	הועלה
OMNI-VE-660 Spec Sheet גרסה B, עודכן: אוג 2026	B		866 קילו-בייט	אוג 2026

Quick Start Guides

	גודל	הועלה
OMNI-Vx-660 - Quick Start Guide עודכן: אוג 2026	495 קילו-בייט	אוג 2026

אם אחד מהקישורים למעלה גורם לתווים מוזרים בדפדפן שלך, לחץ לחיצה ימנית על הקובץ כדי לשמור אותו במחשב שלך.

מפרטים

Video Inputs	HDMI, USB-C USB-C Cable must support standard Thunderbolt 4.
Video Outputs	HDMI Loop Out
Video Resolution Support	480p, 720p, 1080p, 1200p, 1440p, and 4K *See Appendix in manual
Audio Inputs	Embedded Audio on USB-C and HDMI Analog Stereo (Unbalanced)
Audio Outputs	PCM or Dante HDMI Loop Out

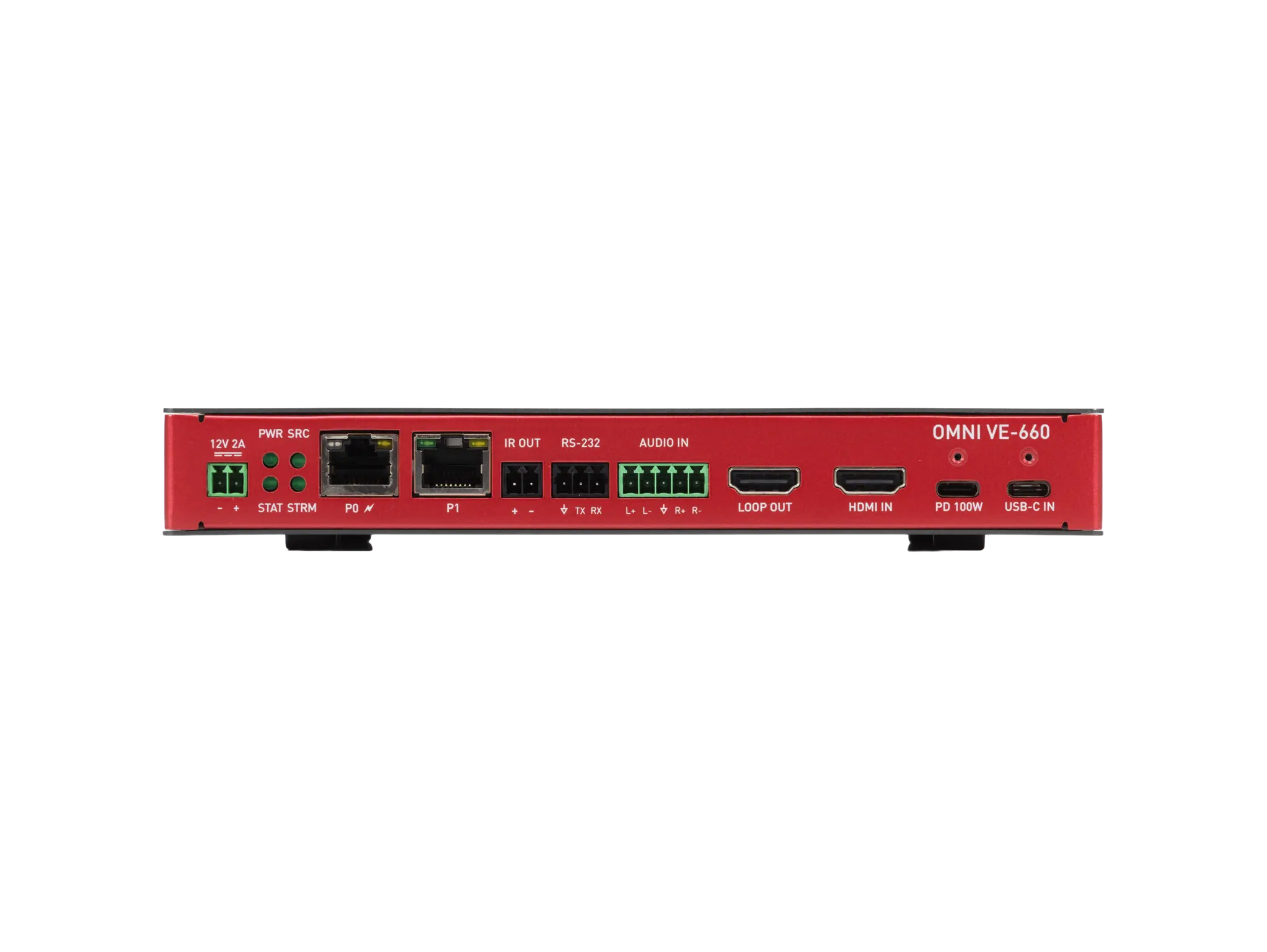

Ports	+12V 2A DC power input, (P0) Gigabit Ethernet port with PoE+ support, (P1) Gigabit Ethernet port, (IR Out) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio In) 5-pin 3.5mm screw terminal, HDMI video loop output, HDMI video input, USB-C input for video plus USB 2.0 data and power, USB-C PD port - supports up to 100W power for USB-C input – requires external USB PD power supply
Environmental	Temperature – 32° to 104°F (0° to 40°C) Humidity – 10% to 90% RH (non-condensing) Heat Dissipation – 85 BTU/hr
Dimensions (H x W x D)	1 1/6" x 7 7/8" x 5" (26.6mm x 200mm x 127mm)
Product Weight	2.16 lbs. (Approx. 0.98kg)
SKU Numbers	BSS-VE660

אביזרים

ACC-MR-NAV10 | 10 Unit Rack Mount Kit with Active Fan Cooling

תמונות גדולות יותר

The BSS ACC-MR-NAV10 is a rack mount accessory that provides ten vertical slots for installing OMNI Networked AV products in an equipment rack. The ACC-MR-NAV10 occupies up to 8 RU of space, including 6 RU for the enclosure and 2 RU to allow ventilation. It provides active cooling with upper and lower trays of cooling fans to ensure ample air circulation. Any unoccupied slots can be covered with the ACC-MR-NAVB1 accessory panel.

The ACC-MR-NAV10 is compatible with the OMNI 600 and 300 Series, as well as the OMNI 200 Series with two units installed side by side.

תיעוד

ACC-MR-NAV10 Spec Sheet (revA-EN) [781 קילו-בייט]
ACC-MR-NAV10 - EU Declaration of Conformity [598 קילו-בייט]
ACC-MR-NAV10 - UKCA Declaration of Conformity [523 קילו-בייט]
ACC-MR-NAV10 - Quick Start Guide [384 קילו-בייט]
ACC-MR-NAV10 - CAD Drawings [6.79 מגה-בייט]

ACC-MT-NAV1 | 1 Unit Multi-Mount Kit

תמונות גדולות יותר

The BSS ACC-MT-NAV1 is an accessory for installing an OMNI AVoIP product below a meeting table, or onto a wall or other surface. It provides a secure, screw-mounted connection that allows simple product removal if necessary. A detachable strain relief plate is included for securing cables into place.

In addition to under-table or surface mounting, the ACC-MT-NAV1 can be used for pole mounting, or installation onto a US or EU/UK electrical junction box. It also includes VESA 100 mm spacing for mounting behind a display. This accessory is compatible with the OMNI 600 and 300 Series, as well as the OMNI 200 Series.
