The BSS OMNI-VE-660 is a feature-rich AV-over-IP encoder for distributing 4K60 4:4:4 video, audio, control, and USB 2.0 signals over Gigabit Ethernet, in environments ranging from classrooms and meeting rooms to courtrooms, hospitality venues, and large enterprise or government facilities.

At the core of the OMNI-VE-660 is the Motion Wavelet Compression (MWC) codec, engineered for pristine visual quality and ultra-low encode to decode latency with fast-motion video, high-detail graphics, and dynamic visual content. Additionally, the OMNI-VE-660 features simultaneous, standards-based 1080p H.264 or H.265 encoding, for bandwidth-efficient streaming over WANs or shared networks to third-party devices and platforms.

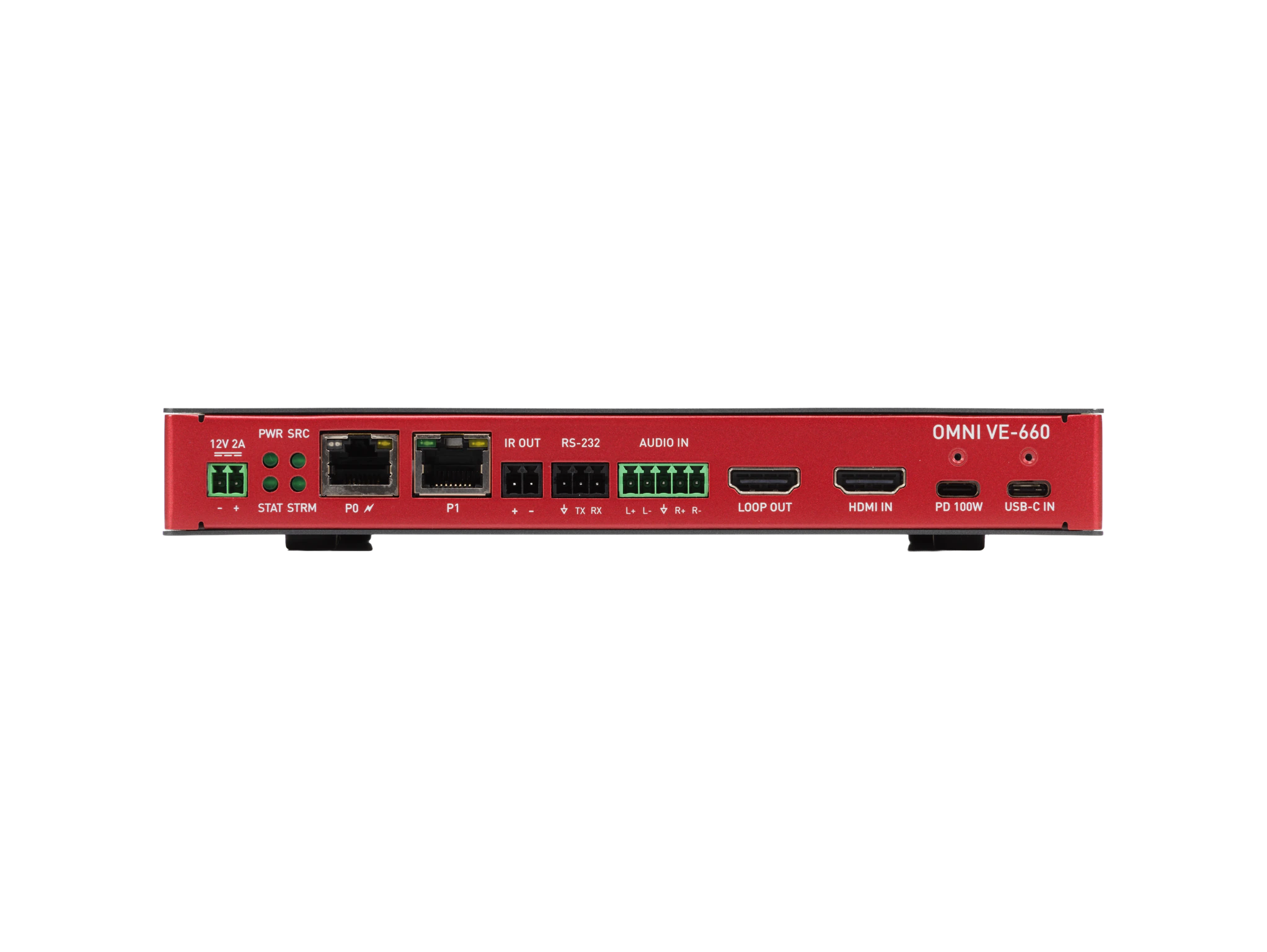

This AVoIP encoder includes USB-C and HDMI inputs with automatic switching and HDMI loop output. The USB-C interface supports DisplayPort Alt Mode for video input, USB data for the host PC, and up to 100 watts charging when a standard USB PD power supply is connected.

The OMNI-VE-660 features USB 2.0 routing and extension through Virtual Network USB 2.0 Hub technology. A host PC can communicate with USB devices located at up to four OMNI 600 decoders or OMNI 200 USB endpoints, supporting USB 2.0 data rates up to 480 Mbps. This capability allows host PCs to interface with cameras, conferencing bars, touch displays, HID peripherals, and other devices at remote locations across the network.

Along with high-performance networked AV distribution, the OMNI-VE-660 is Dante AV-A enabled for interoperability with third-party Dante AV-A decoders. Integrators can configure and manage OMNI 600 systems using Dante Controller, Dante Domain Manager, and Dante Director. In addition, this encoder supports two-channel Dante audio input and output, as well as conversion to USB audio (UAC) for the host PC.

The OMNI-VE-660 is designed for modern professional AV installations, with essential integration features including PoE+ remote powering, a low-power standby mode, video source preview, custom image and slideshow presentations, and open APIs for third-party control.

HIGH-PERFORMANCE NETWORKED AV DISTRIBUTION

Powered by Motion Wavelet Compression (MWC), OMNI 600 delivers pristine-quality 4K60 4:4:4 video with ultra-low latency. This ensures high-quality presentation of fast-motion video and high-detail content for demanding AV applications.

SIMULTANEOUS SECONDARY H.26x STREAMING

Simultaneously output a secondary, standards-based 1080p H.264 or H.265 stream, for livestreaming over third-party services, delivering to recording platforms, or distributing to browsers and mobile devices.

USB ROUTING OVER IP

Virtual Network USB 2.0 Hub technology enables a USB host, connected to a host transceiver or encoder, to communicate with USB devices at up to four remote endpoints, with support for high-bandwidth conferencing devices as well as HID peripherals.

DANTE AUDIO AND DANTE AV-A INTEROPERABILITY

Built-in Dante AV-A compatibility enables interoperability with third-party Dante AV-A devices and system configuration and management through Dante Controller, Dante Domain Manager, and Dante Director. Additionally, each encoder and decoder supports two-channel Dante audio input and output.

ENTERPRISE-GRADE NETWORK SECURITY

BSS OMNI AV over IP incorporates comprehensive network security features and standards to meet the security and operational requirements of enterprise networks.

GESTIONE DEL SISTEMA CENTRALIZZATA

AVX Suite è la risorsa essenziale per la gestione del sistema BSS OMNI AVoIP, che include discovery e configurazione dei dispositivi, switching matrix virtuale, aggiornamenti del firmware, monitoraggio del sistema e altro ancora.
