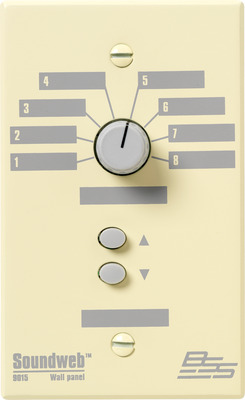

The Soundweb 9015 Wall Panel is a simple hardware interface to the Soundweb programmable DSP system. It provides a quick and easy way for designers to provide a pair of spin or 'up-down' buttons control and source or preset select (or other multiway switch function)in a standard UK-sized light switch panel fitting.

These hardware controls can be used to provide local control of, for example, volume, source select, or parameter presets. Soundweb Designer software is used to 'map' these functions onto the control ports of a Soundweb device. Gain or Level type controls must be 'morphed' into spin pairs to be mapped onto the control ports.
Connection is via screw terminal connectors.

Four terminals are used for common, rotary switch output and the 2 up/down button outputs.

The switch has blank ident areas for marking the switch positions, either directly onto the white area or on self-adhesive labels. Sets of 'standard' labels in 4 languages (English, French, German & Spanish) are supplied with the 9015 to cover most locational requirements.


  Version Language Size Uploaded
file type icon 9015US CAD drawing front
en updated: Dec 2023
  en  2.99 MB Dec 2023
file type icon 9015US Cut Sheet-English
en updated: Dec 2023
  en  690 KB Dec 2023
file type icon 9015US Install Guide-English
en updated: Dec 2023
  en  904 KB Dec 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


Chassis Single-Gang US
Control In Analog (two wire)
Controls 8-position source/preset select, up/down buttons
Config Software
