DCP-555 (discontinued)

Template-Based Conferencing Processor with VoIP

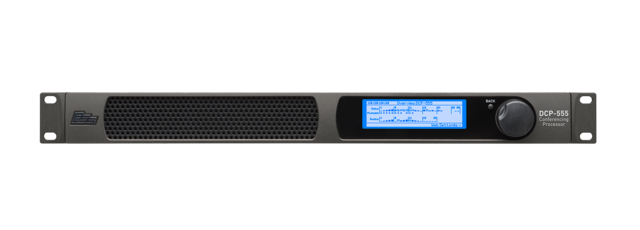

DCP-555
Larger Images

The BSS DCP-555 is a digital conferencing processor designed specifically for meeting spaces. The DCP-555 leverages BSS’s industry-leading audio processing technology to provide intelligent sound management and automated mixing in a template-based solution. This allows IT managers and integrators to easily configure hundreds or thousands of meeting rooms using a web interface without requiring Audio Architect or other software. Technicians simply select the desired template and make configuration adjustments from a web browser, offering a powerful, yet scalable and programming-free solution.

The BSS DCP-555 offers 4 bidirectional VoIP connections, providing support for up to four rooms of audio conferencing connectivity simultaneously without the need for separate IP phones in each room. The DCP-555 also offers a range of onboard I/O connection options, with BLU link, USB and 16x8 analog audio all built in. This provides easy compatibility with other HARMAN and third-party audio devices, with GPIO and relays available for simplified control.

To streamline integration with other HARMAN devices, the DCP-555 includes built-in microphone tunings and JBL speaker tuning presets, offering simple, IT-centric configuration. When using the DCP-555 along with AMX SVSI networked AV solutions, encoder syncing is available to ensure the audio and video signals are perfectly aligned for an optimal experience without any manual setup. These features allow integrators to easily design and configure rooms with minimal complexity.

AMX Module for DCP-555 (Note: Must be logged in to AMX site before clicking link)

Features

  • Template-Based Configuration – Quickly configure conference room systems without using Audio Architect. Allows IT managers to easily reconfigure the room when devices change, etc., without reprogramming.
  • Web-Server Interface – Configuration can be done with any device connected to the same network. There is no additional software required.
  • 4 Simultaneous Bi-Directional VoIP Connections – Use a single device to provide audio conferencing in up to 4 meeting spaces
  • 16x8 analog audio I/O – A range of I/O connectivity options for both digital and analog audio in a fixed configuration
  • BLU link port – Easily interface with other HARMAN audio products such as BSS Soundweb London products or Crown amplifiers
  • 2x2 USB connectivity – Use DCP-555 as a USB microphone input to room PC or AMX Acendo Core for web conferencing. This can be expanded to additional computers using the BSS BLU-USB.
  • GPIO + Relays – Connect to other devices for push-to-talk, mute, etc., or connect directly to Crown amplifiers to power on/off the device

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
en updated: Mar 2024
  en  374 KB Mar 2024
Manuals
Information Documents
file type icon DCP-555 Help File
updated: Mar 2019
    2.9 MB Mar 2019
file type icon Benefits And Applications of Websockets
updated: Oct 2020
    223 KB Oct 2020
User Guides
file type icon DCP-555 API Documentation
en version 1.7, updated: Jun 2019
1.7  en  2.04 MB Jun 2019
file type icon DCP-555 Control API Guide
en updated: Oct 2018
  en  458 KB Oct 2018
Standard Room Configurations
file type icon Standard Room Configurations DCP-555 - Quad Split
en updated: Sep 2018
  en  9.3 KB Sep 2018
file type icon Standard Room Configurations DCP-555 - Small Room
en updated: Sep 2018
  en  8.39 KB Sep 2018
file type icon Standard Room Configurations DCP-555 - Small Room VoIP
en updated: Sep 2018
  en  8.59 KB Sep 2018
file type icon Standard Room Configurations DCP-555 - Split
en updated: Sep 2018
  en  9.12 KB Sep 2018
file type icon Standard Room Configurations DCP-555 - Combined
en updated: Sep 2018
  en  9.11 KB Sep 2018
Device Modules
file type icon DCP-555 Crestron Module
version 1.0, updated: Dec 2019
1.0    29.2 MB Dec 2019
file type icon DCP-555 AMX Duet Module
version 1.0.1, updated: Sep 2019
1.0.1    6.29 MB Sep 2019
Firmware
platform icon DCP-555 Firmware
version 1.1.1, updated: Oct 2019
1.1.1     155 MB Oct 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
