FCS-926 (discontinued)

Varicurve Equalizer / Analyzer Master

Larger Images

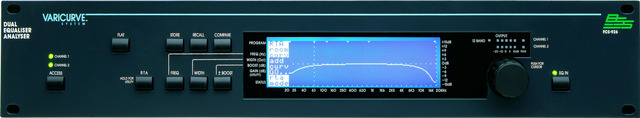

The FCS-926 combines a digital-controlled analogue parametric filter set with intuitive assignable controls, fully interactive graphic display and intelligent spectrum analyser, plus MIDI control.

The FCS-920 is a 1U slave module with the same EQ processing facilities as the FCS-926 but with no front panel controls.

VARICURVE's multiband parametric equalisation creates a more accurate and sonically superior EQ contour than conventional manual or programmable graphic equalisers, and is equally at
home on Front-of-House, Monitor, or Studio Equalisation.

Each unit offers two channels of 6 band parametric EQ, or can be set to a mono 12 band equaliser. Any filter may be set to one of 212 frequencies, with a cut/boost of +/-15dB, or notch of 30dB, and a variable filter bandwidth of 0.1 to 2 octaves.

An integral spectrum analyser provides a fast method of measuring room response and automatically determining the correct EQ curve (as a first approximation).

Downloads

  Version Language Size Uploaded
FCS-926 CAD drawing front
en updated: Nov 19, 2012
  en  38.5 KB Nov 19, 2012
FCS-926 CAD drawing rear
en updated: Nov 19, 2012
  en  64.5 KB Nov 19, 2012
FCS-926 Cut Sheet-English
en updated: Nov 19, 2012
  en  87 KB Nov 19, 2012
FCS-926 Owner's Manual-English
en updated: Nov 19, 2012
  en  1.97 MB Nov 19, 2012
Software
Soundbench
version 3, updated: Aug 23, 2016
  2.58 MB Aug 23, 2016

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
