OPAL Series DPR-422 (discontinued)

Dual Compressor/De-Esser

OPAL Series DPR-422
Larger Images

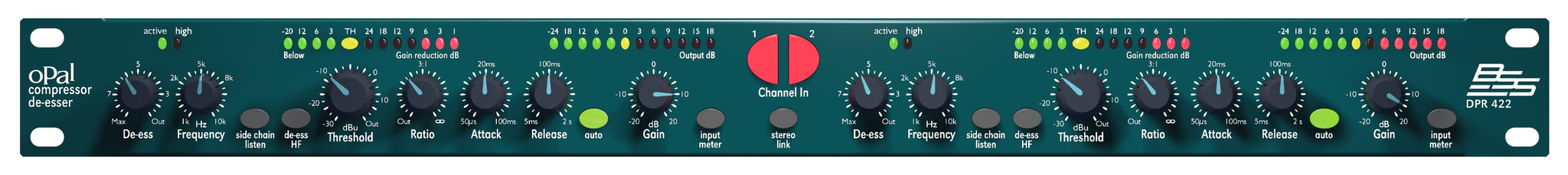

The combination of a high-quality compressor with a sophisticated de-esser provides the engineer with functions to solve a number of processing requirements. A quick look at the front panel shows that each channel provides a full range of signal level control facilities: a dedicated and tuneable de-esser section, a compressor section with comprehensive control of all main parameters and an AUTOmode option for general use, and finally a highly informative LED metering section that never leaves the engineer 'in the dark'.

The DPR-422 uses a unique internal architecture, pioneered on the classic DPR-402, which combines a double side-chain with a subtractor to eliminate the distortion, noise and unwanted side-effects found in conventional compressors.

This not only ensures a cleaner, purer signal, but forms the basis of entirely new possibilities in signal processing.

Each channel includes a variable ratio compressor that features BSS's proprietary 'progressive knee' characteristic. This gives soft-knee, over-easy musicality at low ratios, varying gradually towards dependable hard-limiter precision at the maximum setting.

Attack and release time constants can be switched to be continually regulated by the dynamic and harmonic content of the programme material, so requiring virtually no attention from the operator.

BSS Audio's De-Esser design is recognised world-wide as a highly-desirable item in the engineers toolkit, and provides two main de-essing options to suit different program material and means of reproduction.

Broadband de-essing adds to normal compressor performance the ability to compress the whole signal when HF signals exceed the pre-set de-ess threshold level.

For greater precision in demanding applications the threshold, attack and release controls can be used.

HF - ONLY de-essing creates a dedicated, frequency-selective de-esser channel which compresses high frequency signals while leaving low frequency content unmodified. The STEREO LINK facility takes the guesswork out of compressing a stereo signal, linking the two VCA side-chain circuits together under the control of the left-hand channel settings.

Downloads

  Version Language Size Uploaded
file type icon OPAL Series DPR-422 CAD drawing front
en updated: Mar 2024
  en  81.1 KB Mar 2024
file type icon OPAL Series DPR-422 CAD drawing rear
en updated: Mar 2024
  en  63.8 KB Mar 2024
file type icon OPAL Series DPR-422 Cut Sheet-English
en updated: Mar 2024
  en  166 KB Mar 2024
file type icon OPAL Series DPR-422 Owner's Manual-English
en updated: Mar 2024
  en  1010 KB Mar 2024
file type icon OPAL Series DPR-422 Owner's Manual-Spanish
es updated: Mar 2024
  es  1.35 MB Mar 2024

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
