BSS OMNI-VD-330

Larger Images

The BSS OMNI-VD-330 is an AV-over-IP decoder for streaming 4K60 4:4:4 video with H.264 or H.265 compression, along with audio and control. Optimized for bandwidth-efficient AV distribution over WANs (wide-area networks) or shared networks, the OMNI-VD-330 is ideal for applications such as live presentations, digital signage, media playback, camera feeds, and content distribution in classrooms, meeting spaces, convention centers, retail environments, and hospitality venues.

The OMNI-VD-330 also features powerful USB video and audio integration over USB-C. AV streams can be recorded directly to external USB storage up to 2 TB, with the option to schedule transfer of recordings to a network storage location. Additionally, Dante audio and H.26x streams can be converted into USB audio (UAC) and USB video (UVC), enabling a host PC to access network AV streams directly for recording, conferencing, or livestreaming applications.

Along with high-performance networked AV streaming, the OMNI-VD-330 is Dante AV-H enabled for interoperability with third-party Dante AV-H encoders for video streaming up to 4K60 4:2:0. Integrators can configure and manage OMNI 300 systems using Dante Controller, Dante Domain Manager, and Dante Director, while Dante Studio allows video streams to be monitored or brought directly into conferencing, production, recording, or livestreaming workflows.

The OMNI-VD-330 is designed for modern professional AV installations, with essential integration features including PoE+ remote powering, a low-power standby mode, video source preview, custom image and slideshow presentations, open APIs for third-party control, and 4K video scaling.

HIGH-PERFORMANCE H.26X VIDEO STREAMING
OMNI 300 delivers high-performance 4K60 4:4:4 video streaming using H.264 or H.265 compression, with excellent image quality and efficient bandwidth usage over WANs or shared networks.

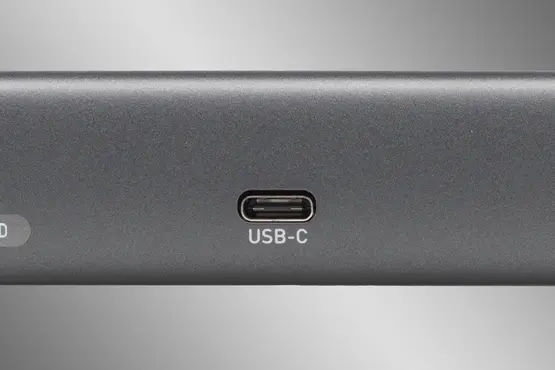

USB VIDEO AND AUDIO INTEGRATION
USB-C connectivity enables AV stream recording directly to external USB storage or allows host computers to access Dante audio and H.26x video streams as USB audio (UAC) and USB video (UVC).
DANTE AV-H INTEROPERABILITY
Built-in Dante AV-H compatibility allows OMNI 300 encoders and decoders to interoperate with third-party Dante AV-H devices, with system configuration and management through Dante Controller, Dante Domain Manager, and Dante Director.
ENTERPRISE-GRADE NETWORK SECURITY
BSS OMNI AV over IP incorporates comprehensive network security features and standards to meet the security and operational requirements of enterprise networks.
CENTRALIZED SYSTEM MANAGEMENT

AVX Suite is the essential resource for BSS OMNI AVoIP system management which includes device discovery and configuration, virtual matrix switching, firmware updates, system monitoring, and more.

HIGH-PERFORMANCE H.26X VIDEO STREAMING

OMNI 300 delivers high-performance 4K60 4:4:4 video streaming using H.264 or H.265 compression, with excellent image quality and efficient bandwidth usage over WANs or shared networks.

USB VIDEO AND AUDIO INTEGRATION

USB-C connectivity enables AV stream recording directly to external USB storage or allows host computers to access Dante audio and H.26x video streams as USB audio (UAC) and USB video (UVC).

DANTE AV-H INTEROPERABILITY

Built-in Dante AV-H compatibility allows OMNI 300 encoders and decoders to interoperate with third-party Dante AV-H devices, with system configuration and management through Dante Controller, Dante Domain Manager, and Dante Director.

ENTERPRISE-GRADE NETWORK SECURITY

BSS OMNI AV over IP incorporates comprehensive network security features and standards to meet the security and operational requirements of enterprise networks.

CENTRALIZED SYSTEM MANAGEMENT

AVX Suite is the essential resource for BSS OMNI AVoIP system management which includes device discovery and configuration, virtual matrix switching, firmware updates, system monitoring, and more.

Features

High-performance 4K60 4:4:4 H.264 or H.265 decoding, plus audio and control
USB video and audio over USB-C for recording streams or interfacing with a host PC
Independent H.26x stream decoding and conversion to USB video (UVC)
Two-channel Dante audio input and output (2x2) with conversion to USB audio (UAC)
Dante AV-H enables third-party networked AV interoperability, plus system management from Dante Controller, Dante Domain Manager, and Dante Director
Video preview from the built-in web interface or a touch panel
Supports custom image and slideshow presentations
Enhance video presentations with 4K video scaling and seamless switching
PoE+ powered with low-power (standby) mode to conserve energy
Enterprise-grade network security and standards including IEEE 802.1x, HTTPS, TLS, AES-256 encryption, LDAP, VLAN tagging, and QoS
AVX Suite for OMNI 300 system configuration and management
HARMAN HControl and BSS Direct Control provide open APIs for third-party control integration

Videos

Downloads

Spec Sheets

	Language	Size	Uploaded
OMNI-VD-330 Spec Sheet updated: Jul 2026		824 KB	Jul 2026

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Video Outputs	HDMI Recording (Non-HDCP) UVC (USB Video)
Video Resolution Support	480p, 720p, 1080p, 1200p, 1440p, and 4K *See Appendix in manual
Audio Inputs	PCM UAC (USB Audio) Dante
Audio Outputs	Embedded Audio on HDMI UAC (USB Audio) Dante Analog Stereo (Unbalanced)
Ports	+12V 2A DC power input, (P0) Gigabit Ethernet port with PoE+ support, (P1) Gigabit Ethernet port, (IR Out) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio Out) 5-pin 3.5mm screw terminal, HDMI video output, USB-C port (front panel) – supports AV recording and UVC/UAC
Environmental	Temperature – 32° to 104°F (0° to 40°C) Humidity – 10% to 90% RH (non-condensing) Heat Dissipation – 85 BTU/hr
Dimensions (H x W x D)	1 1/6” x 7 7/8” x 5” (26.6mm x 200mm x 127mm)
Product Weight	1.41 lbs. (Approx. 0.45kg)
SKU Numbers	BSS-VD330

Accessories

ACC-MR-NAV10 | 10 Unit Rack Mount Kit with Active Fan Cooling

Larger Images

The BSS ACC-MR-NAV10 is a rack mount accessory that provides ten vertical slots for installing OMNI Networked AV products in an equipment rack. The ACC-MR-NAV10 occupies up to 8 RU of space, including 6 RU for the enclosure and 2 RU to allow ventilation. It provides active cooling with upper and lower trays of cooling fans to ensure ample air circulation. Any unoccupied slots can be covered with the ACC-MR-NAVB1 accessory panel.

The ACC-MR-NAV10 is compatible with the OMNI 600 and 300 Series, as well as the OMNI 200 Series with two units installed side by side.

Documentation

ACC-MR-NAV10 Spec Sheet (EN) [781 KB]

ACC-MT-NAV1 | 1 Unit Multi-Mount Kit

Larger Images

The BSS ACC-MT-NAV1 is an accessory for installing an OMNI AVoIP product below a meeting table, or onto a wall or other surface. It provides a secure, screw-mounted connection that allows simple product removal if necessary. A detachable strain relief plate is included for securing cables into place.

In addition to under-table or surface mounting, the ACC-MT-NAV1 can be used for pole mounting, or installation onto a US or EU/UK electrical junction box. It also includes VESA 100 mm spacing for mounting behind a display. This accessory is compatible with the OMNI 600 and 300 Series, as well as the OMNI 200 Series.
