BLU-BOB1

(Break-Out Box) Output Expander

Larger Images

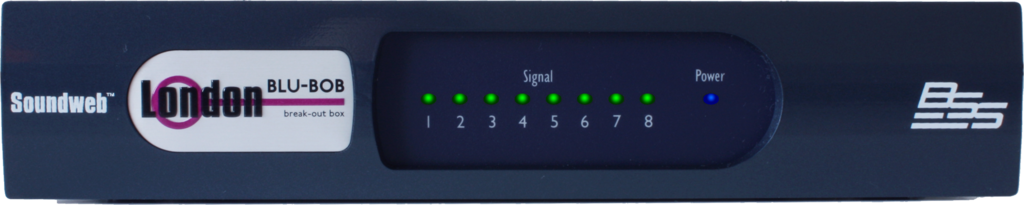

The Soundweb London BLU-BOB1 or “break-out box” offers 8 channels of analog audio output expansion via the Soundweb London high bandwidth, fault tolerant digital audio bus.

This expander features a low latency, fault tolerant digital audio bus of 256 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. The BSS Audio MC-1 fiber optic media converter can be used to increase the distance between devices to over 10km (6.2 miles) using single mode fiber.

The BLU-BOB1 output channels are easily configured by six DIP switches located on the rear of the device, which select consecutive channels in groups of eight. This simple configuration allows selection of any 8-channel range from the 256 channels available on the digital audio bus. Output channel assignments are configured by DIP switch selection only. The BLU-BOB1 is not configured by HiQnet™ Audio Architect.

The 8 analog line level outputs utilize the same terminal block connectors as the other members of the Soundweb London family.

Signal present and power status are clearly displayed by front panel LED indicators.

Two chassis styles are available, the first (BLU-BOB1) is a half rack width, desk or wall mounted version and the second (BLU-BOB2) is a 19” single rack space version with mounting ears for equipment racks. Front panel indication and rear panel connections are identical on both versions.

The BLU-BOB1 break-out box output expanders are powered by a 12V DC adapter which is included with the devices.

The BLU-BOB1 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.

Features

  • 8 Analog Audio Outputs
  • Standard Terminal Block Connectors for Analog Audio Connections
  • DIP Switches for Channel Range Selection
  • 256 Channel, Low Latency, Fault Tolerant Digital Audio Bus
  • Clear Front Panel LED Indication
  • 12VDC External Power included
  • Terminal Block Connectors for Power Connection
  • Half Rack Width, Desk Mount or Wall Mount Chassis

Downloads

  Version Language Size Uploaded
BLU-BOB1 CAD drawing front
en updated: Nov 23, 2020
  en  479 KB Nov 23, 2020
BLU-BOB1 CAD drawing rear
en updated: Nov 23, 2020
  en  1.02 MB Nov 23, 2020
BLU-BOB1 Cut Sheet-English
en updated: Nov 23, 2020
  en  479 KB Nov 23, 2020
Brochures
Soundweb London Family Brochure
updated: Oct 22, 2020
    1.3 MB Oct 22, 2020
Software
HiQnet London Architect
version 6.00.R5, updated: Jul 25, 2017
6.00.R5     117 MB Jul 25, 2017
Install Guides
    1.2 MB Oct 22, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Chassis Half rack (single space, half-width)
Analog Outputs 8
Config DIP switch
SWL Digital Audio Bus 256

Accessories

1U Rack-Mount Kit
1U Rack-Mount Kit Main photo
Larger Images

The BSS Audio 1U Rack-Mount Kit allows up to two half-rack Soundweb London devices—BLU-BIB and BLU-BOB1—to be mounted on a shelf occupying a single rack space.

The 1U Rack-Mount Kit can accommodate one BLU-BIB device, one BLU-BOB1 device, two BLU-BIB devices, two BLU-BOB1 devices, or one of each device. With each device offering eight channels of analog I/O expansion, the 1U Rack-Mount Kit allows for higher I/O density (16 channels) in a single rack space.

For instances in which only one I/O expander is mounted, the included half-rack blanking plate can be used to fill the blank space in the front of the rack.

KEY FEATURES:

  • Accommodates Two BLU-BIB / BLU-BOB1 Devices in One Rack Space
  • Half-Rack Blanking Plate for Unused Space (included)
  • Mounting Screws for Securing Devices to Shelf (included)
