AR-204 (discontinued)

Quad Balancing Unit

Larger Images

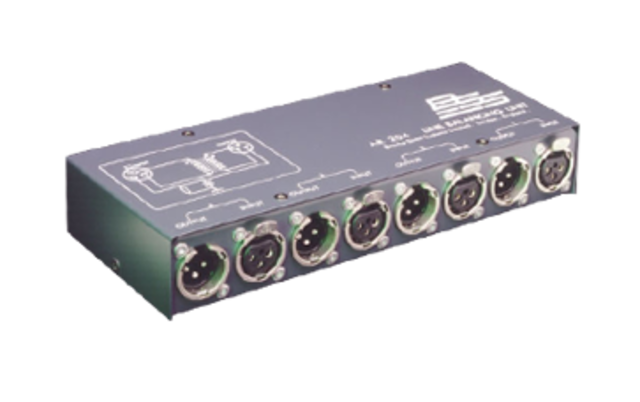

The AR-204 is a 4-channel, high-quality, passive, transformer coupled balancing unit designed to provide balanced and floating 600 Ohm signal outputs from an unbalanced line level input signal, or it can terminate a balanced 600 Ohm line for unbalanced use.

In addition, the unit can be used as a floating balanced isolator when protection is required between two audio circuits. The AR-211 is a rack-mounting kit for the AR-204 and will hold two AR-204 units.


  Version Language Size Uploaded
file type icon AR-204 Cut Sheet-English
en updated: Jun 15, 2022
  en  39.8 KB Jun 15, 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
