BLU-BIB

(Break-In Box) Input Expander

Larger Images

The Soundweb London BLU-BIB or “break-in box” offers 8 channels of analog audio input expansion via the Soundweb London high bandwidth, fault tolerant digital audio bus.

This expander features a low latency, fault tolerant digital audio bus of 256 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. The BSS Audio MC-1 fiber optic media converter can be used to increase the distance between devices to over 10km (6.2 miles) using single mode fiber.

The BLU-BIB input channels are easily configured by six DIP switches located on the rear of the device, which select consecutive channels in groups of eight. This simple configuration allows assignment to any 8-channel range within the 256 channels available on the digital audio bus. Input channel assignments are configured by DIP switch selection only. The BLU-BIB is not configured by HiQnet™ Audio Architect. Each channel’s input gain and Phantom Power are adjusted using buttons on the front panel.

The 8 analog mic/line level inputs utilize the same terminal block connectors as the other members of the Soundweb London family.

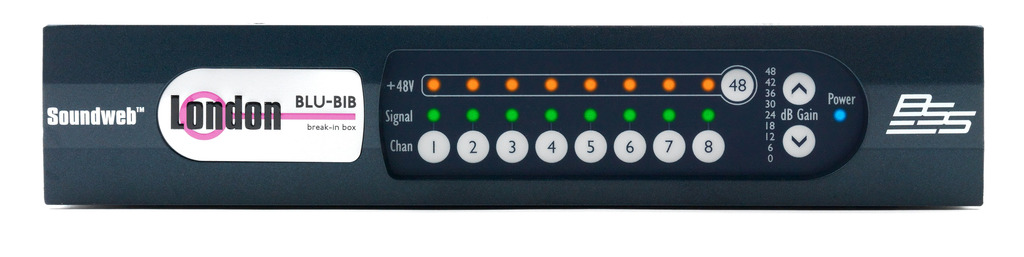

Signal present, clip, and Phantom Power per channel are displayed by front panel LED indicators. The front panel also contains a power status and applied gain LED indicators.

The BLU-BIB operates in three different modes, which are entered and exited via the front panel controls. Edit Mode allows the user to adjust each channel’s input gain and Phantom Power. Normal Mode prevents the user from changing input gain or Phantom Power. Stealth Mode prevents the same changes from occurring, but without LED illumination (except power).

The chassis is a half rack wide and can be rack mounted using the BSS Audio 1U Rack-Mount Kit. It can also be under-table mounted or wall mounted using the included mounting brackets. The BLU-BIB break-in box input expander is powered by a 12V DC adapter which is included with the device.

The BLU-BIB and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.

Features

  • 8 Analog Audio Inputs
  • Standard Terminal Block Connectors for Analog Audio Connections
  • DIP Switches for Channel Range Selection
  • Front Panel Input Gain and Phantom Power Control
  • Front Panel Lockout for Tamper-Free Operation
  • Front Panel “Stealth” Mode for Inconspicuous Operation
  • 256 Channel, Low Latency, Fault Tolerant Digital Audio Bus
  • Clear Front Panel LED Indication
  • 12VDC External Power included
  • Terminal Block Connectors for Power Connection
  • Half Rack Width, Desk Mount or Wall Mount Chassis (BLU-BOB1)
  • 1U Rack-Mount Kit available separately

Downloads

  Version Language Size Uploaded
BLU-BIB Cut Sheet-English
en updated: Mar 13, 2018
  en  375 KB Mar 13, 2018
BLU-BIB Install Guide-English
en updated: Oct 07, 2016
  en  1.18 MB Oct 07, 2016
Brochures
Soundweb London Family Brochure
updated: Aug 27, 2015
    1.3 MB Aug 27, 2015
Software
HiQnet London Architect
version 6.00.R5, updated: Jul 25, 2017
6.00.R5     117 MB Jul 25, 2017

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Chassis Half rack (single space, half-width)
Analog Inputs 8
Config DIP switch
SWL Digital Audio Bus 256

Accessories

1U Rack-Mount Kit
1U Rack-Mount Kit Main photo
Larger Images

The BSS Audio 1U Rack-Mount Kit allows up to two half-rack Soundweb London devices—BLU-BIB and BLU-BOB1—to be mounted on a shelf occupying a single rack space.

The 1U Rack-Mount Kit can accommodate one BLU-BIB device, one BLU-BOB1 device, two BLU-BIB devices, two BLU-BOB1 devices, or one of each device. With each device offering eight channels of analog I/O expansion, the 1U Rack-Mount Kit allows for higher I/O density (16 channels) in a single rack space.

For instances in which only one I/O expander is mounted, the included half-rack blanking plate can be used to fill the blank space in the front of the rack.

KEY FEATURES:

  • Accommodates Two BLU-BIB / BLU-BOB1 Devices in One Rack Space
  • Half-Rack Blanking Plate for Unused Space (included)
  • Mounting Screws for Securing Devices to Shelf (included)
